For AMD LGA AM3 Computer Motherboard Socket Test CPU Analyzer Tester with LED

SKU: 32952007764
  • Brand Name: VBESTLIFE
  • Model Number: Computer Motherboard Tester
  • Type: Network Repair Tool Kit
  • Package: Yes
Availability:

1049 in stock

$28.38 $19.32

1049 in stock

Compare

Description

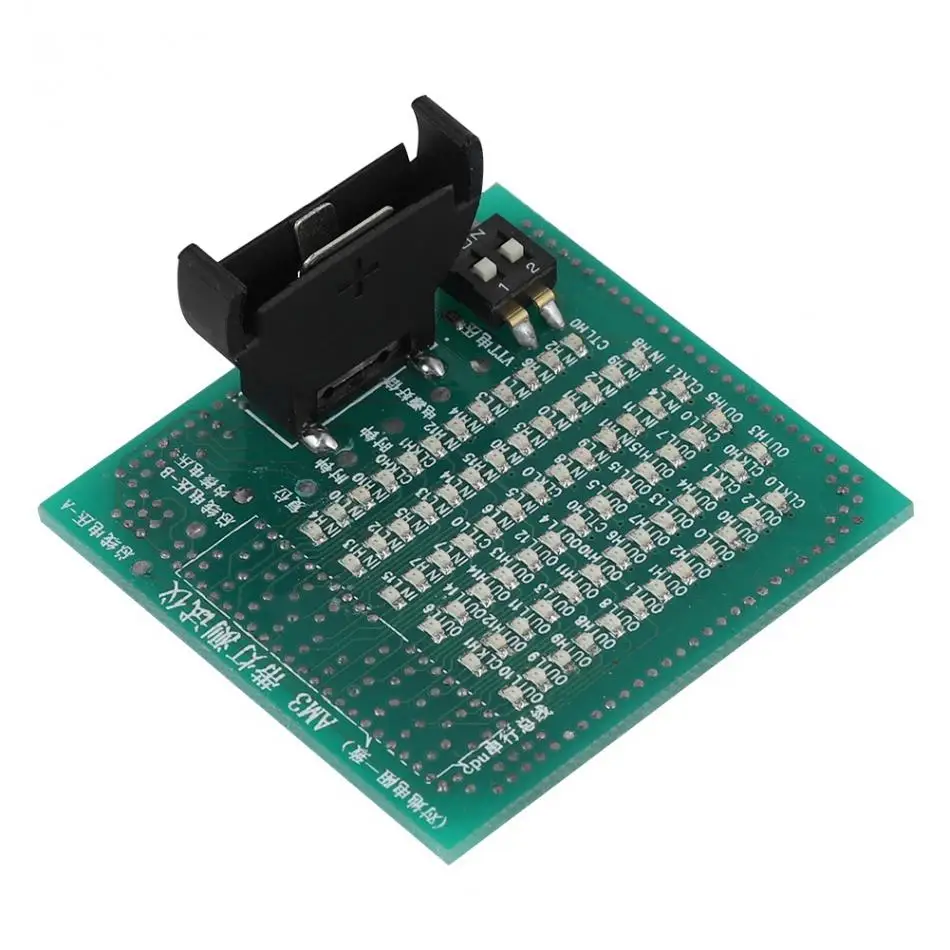

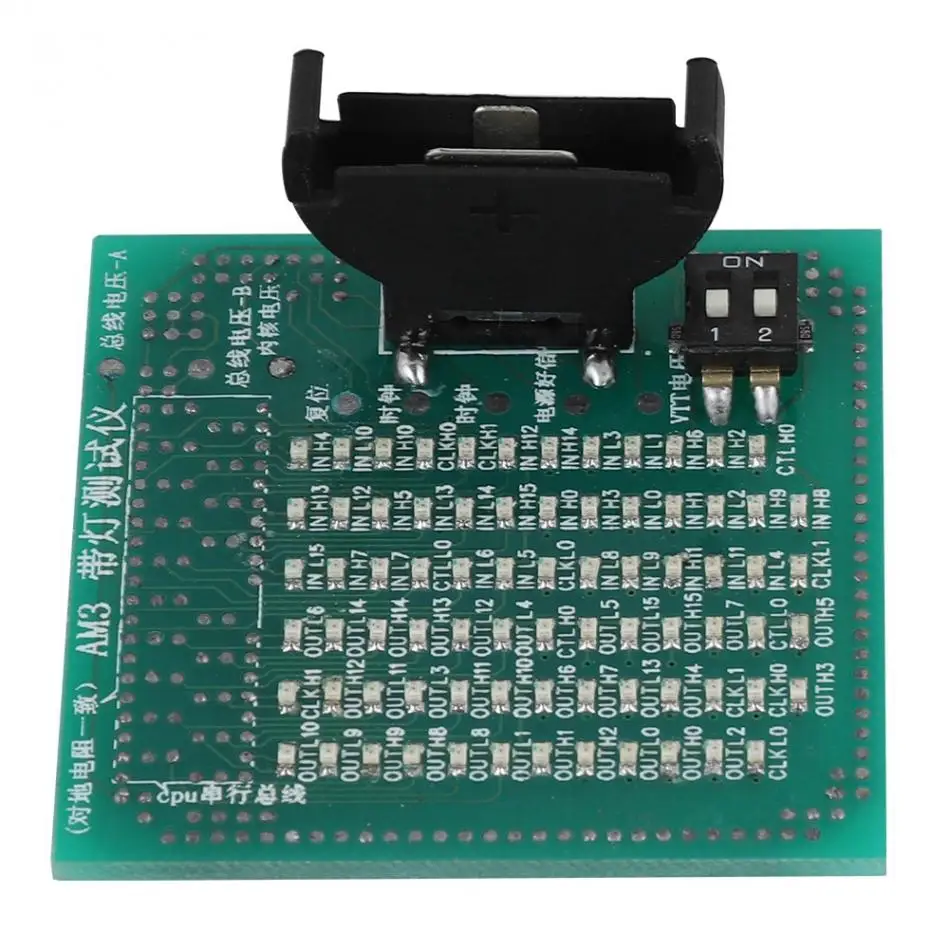

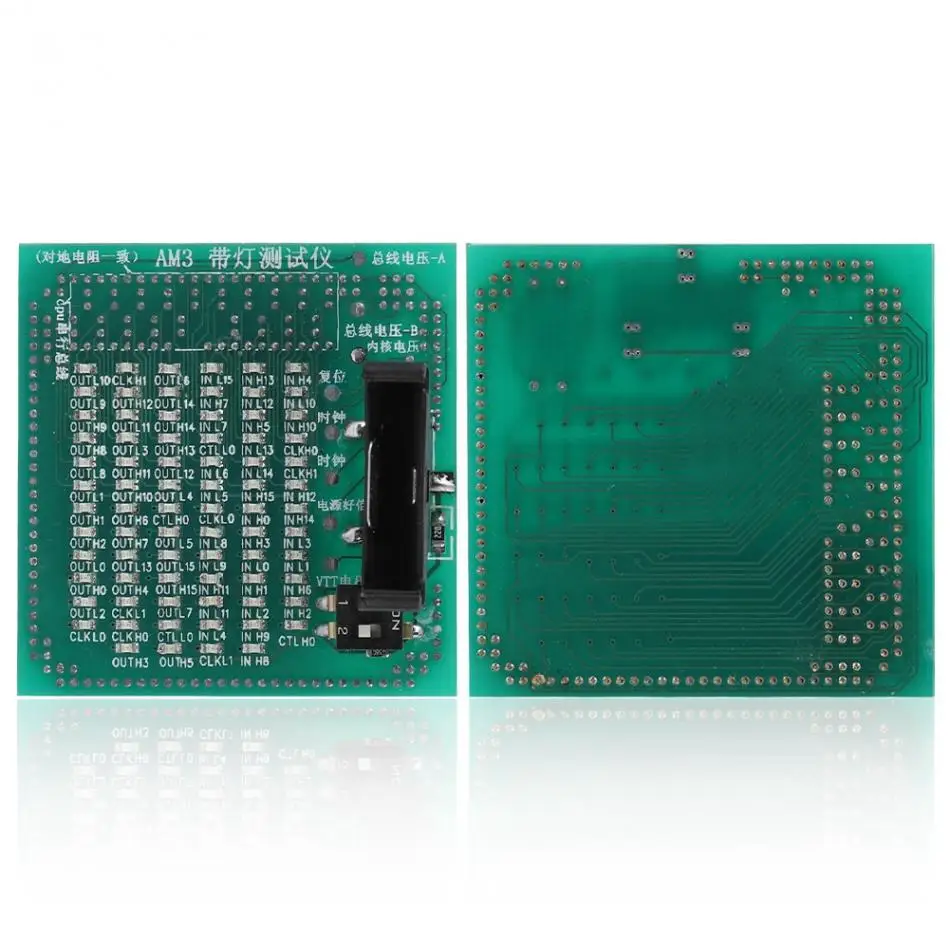

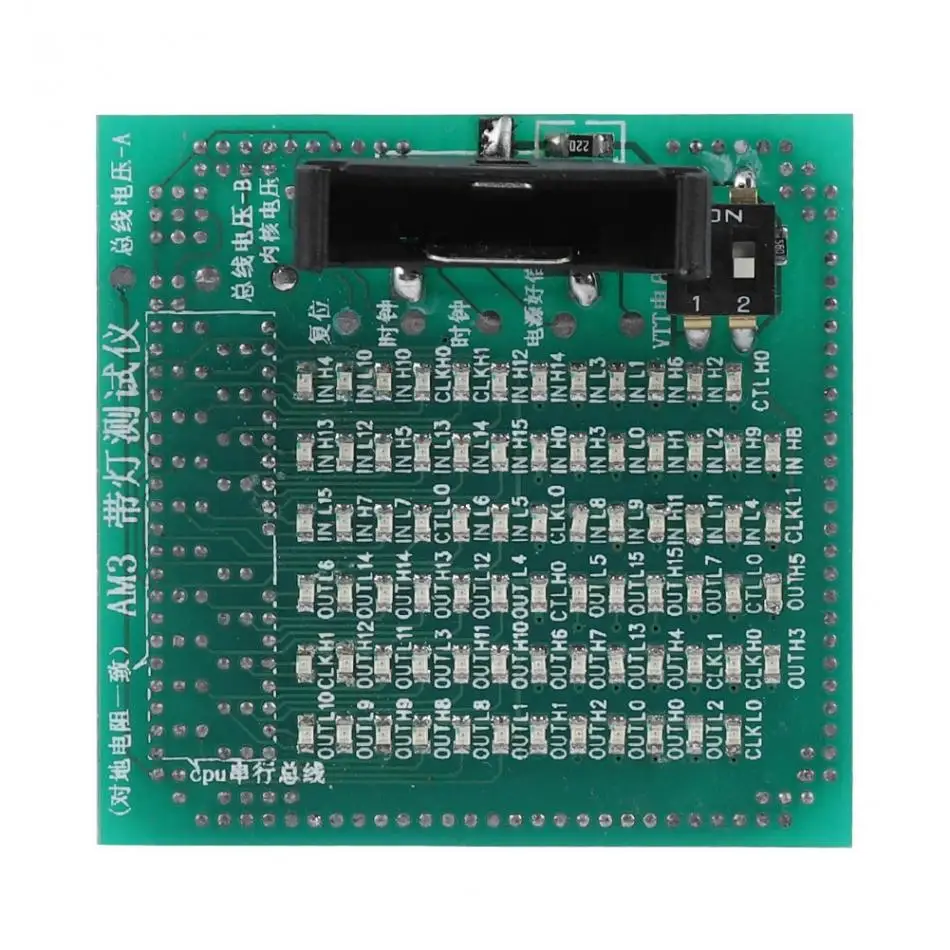

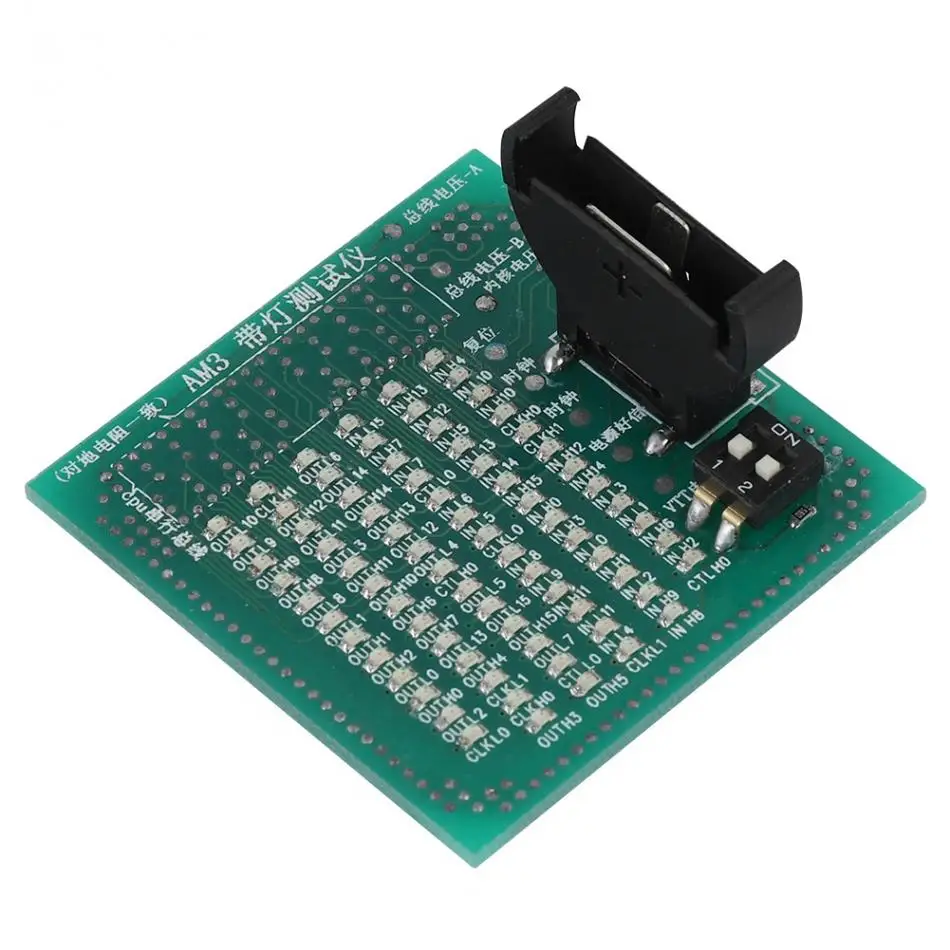

For AMD LGA AM3 Computer Motherboard Socket Test CPU Analyzer Tester with LED

Note:
1. Please note that you need to purchase (CR2032, 3.2V) battery for the tester slot. It's NOT included.
2. Please allow slight error due to manual measurement. Thanks for your kind understanding.

Features:

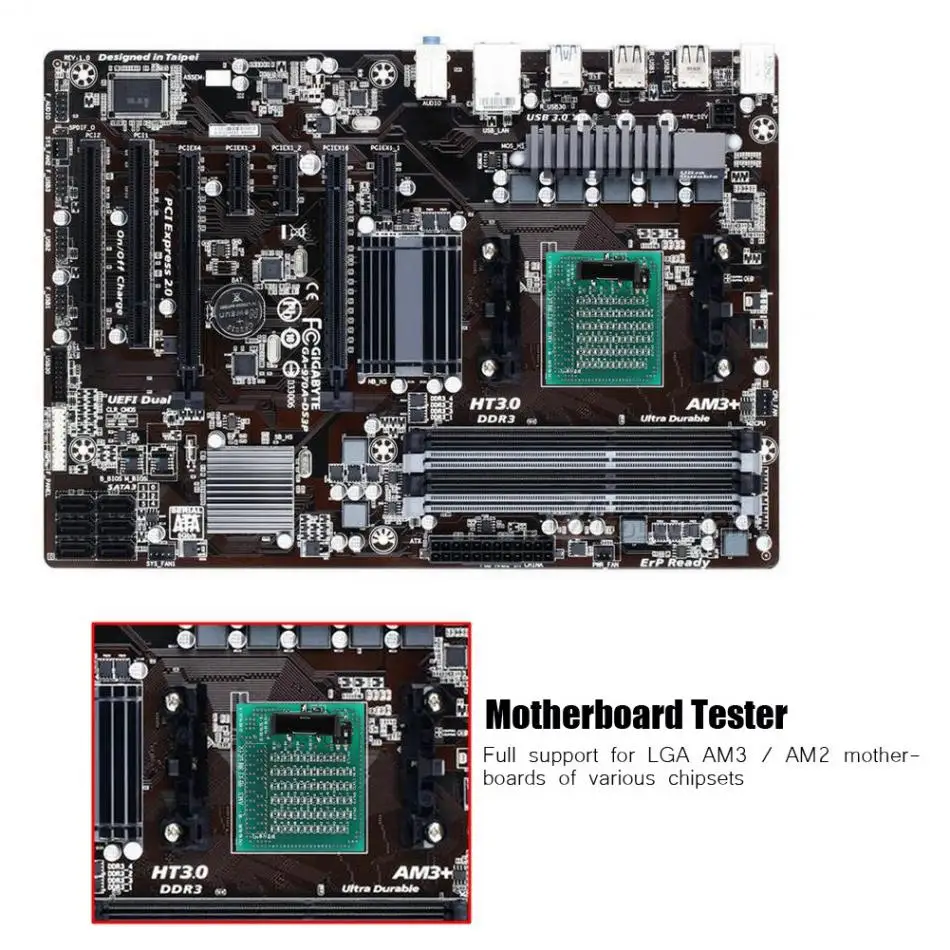

  • Full support for LGA AM3 / AM2 motherboards of various chipsets

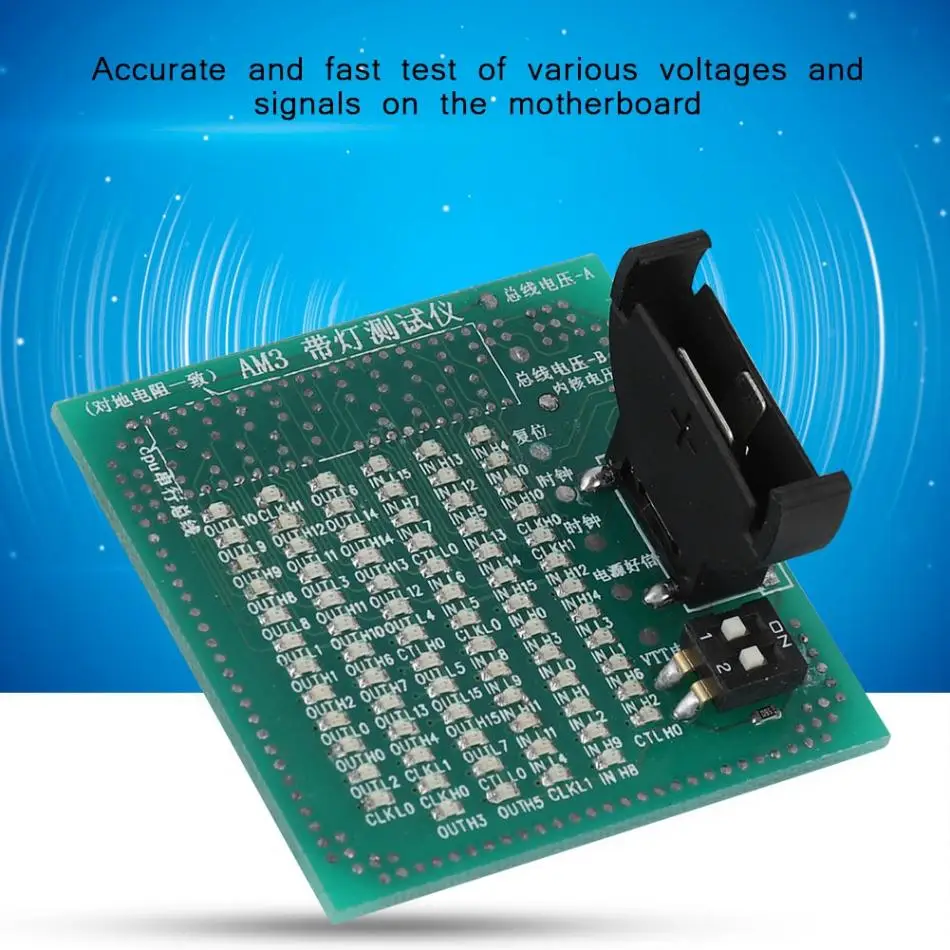

  • Accurate and fast test of various voltages and signals on the motherboard

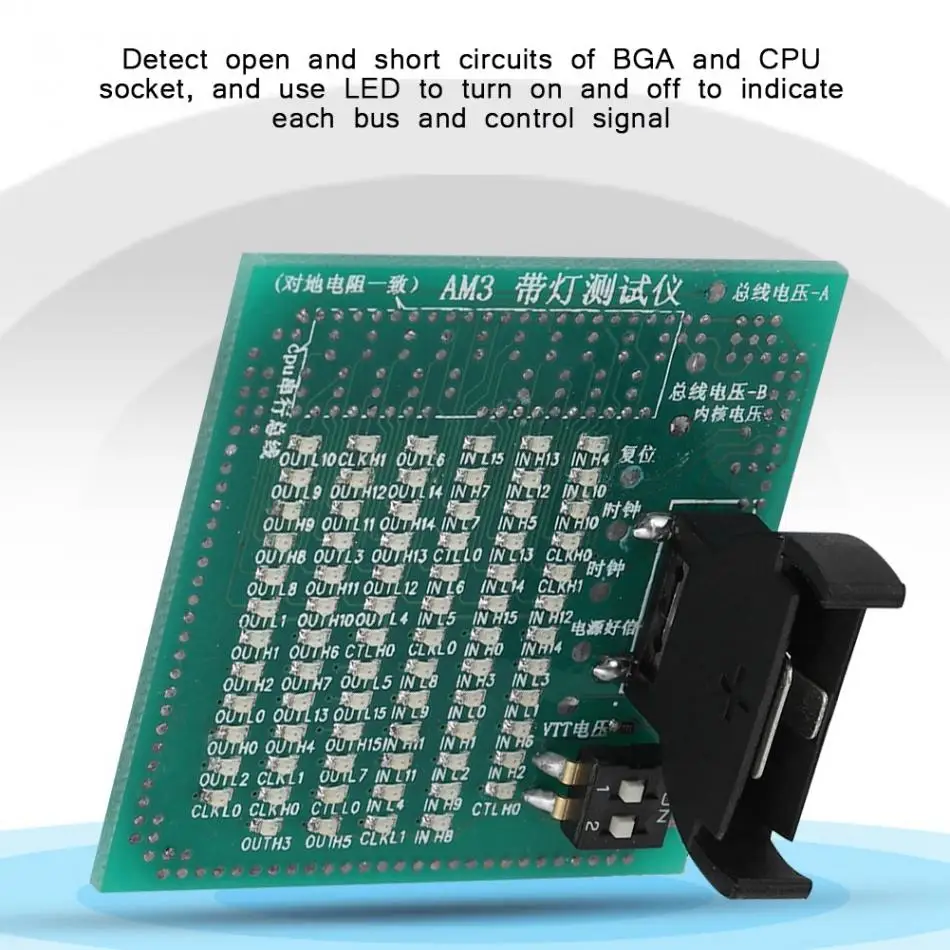

  • Detect open and short circuits of BGA and CPU socket, and use LED to turn on and off to indicate each bus and control signal.

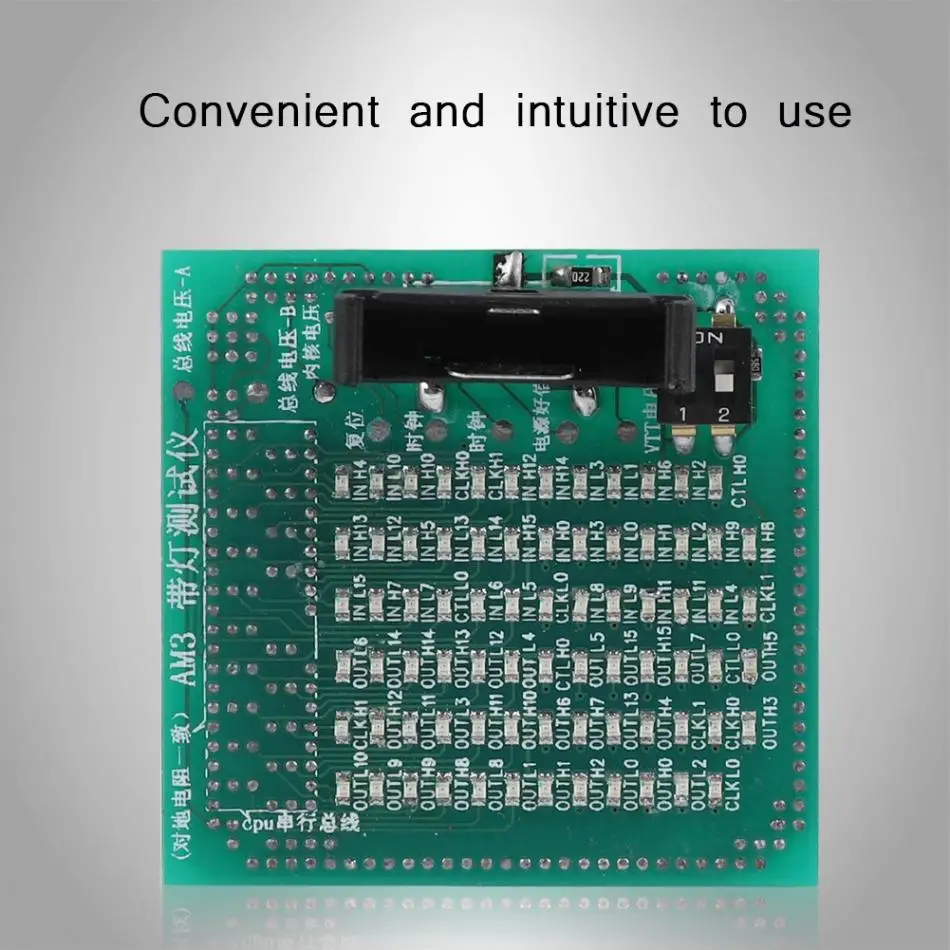

  • It is convenient and intuitive to replace the traditional multimeter.

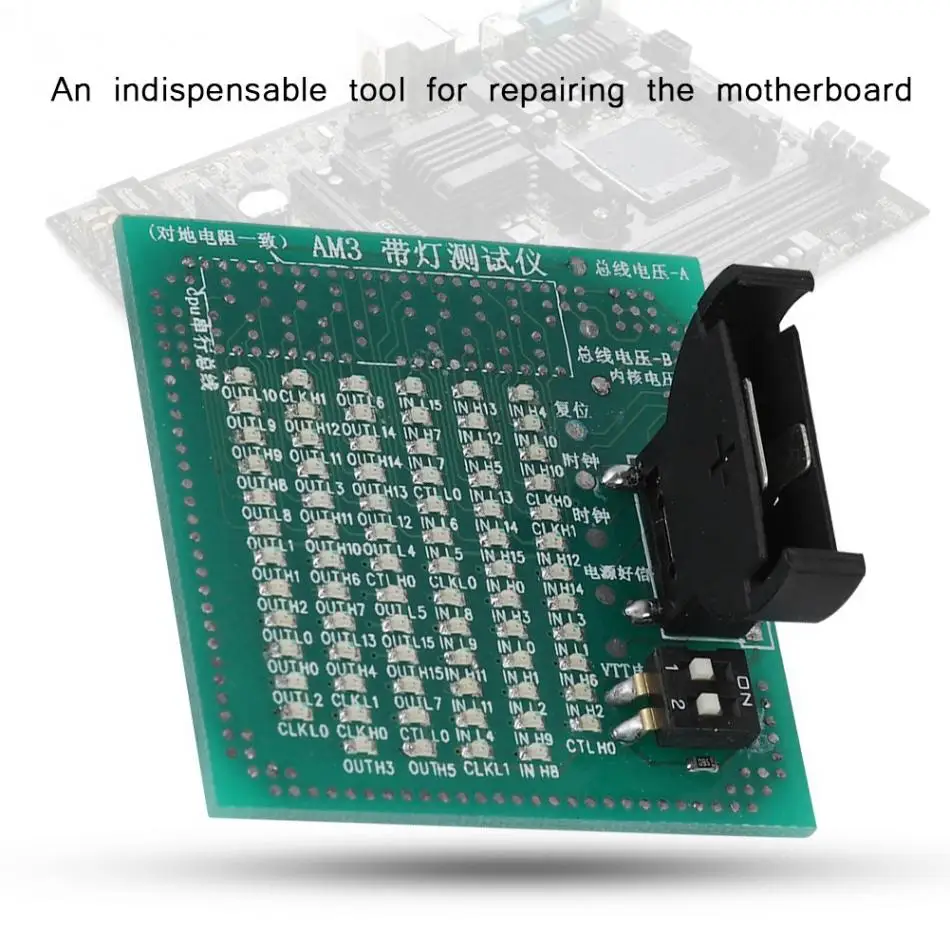

  • It is an indispensable tool for repairing the motherboard.

Specification:
Type: Motherboard Tester
Suitable for chipset: For AMD BGA AM3 interface motherboard

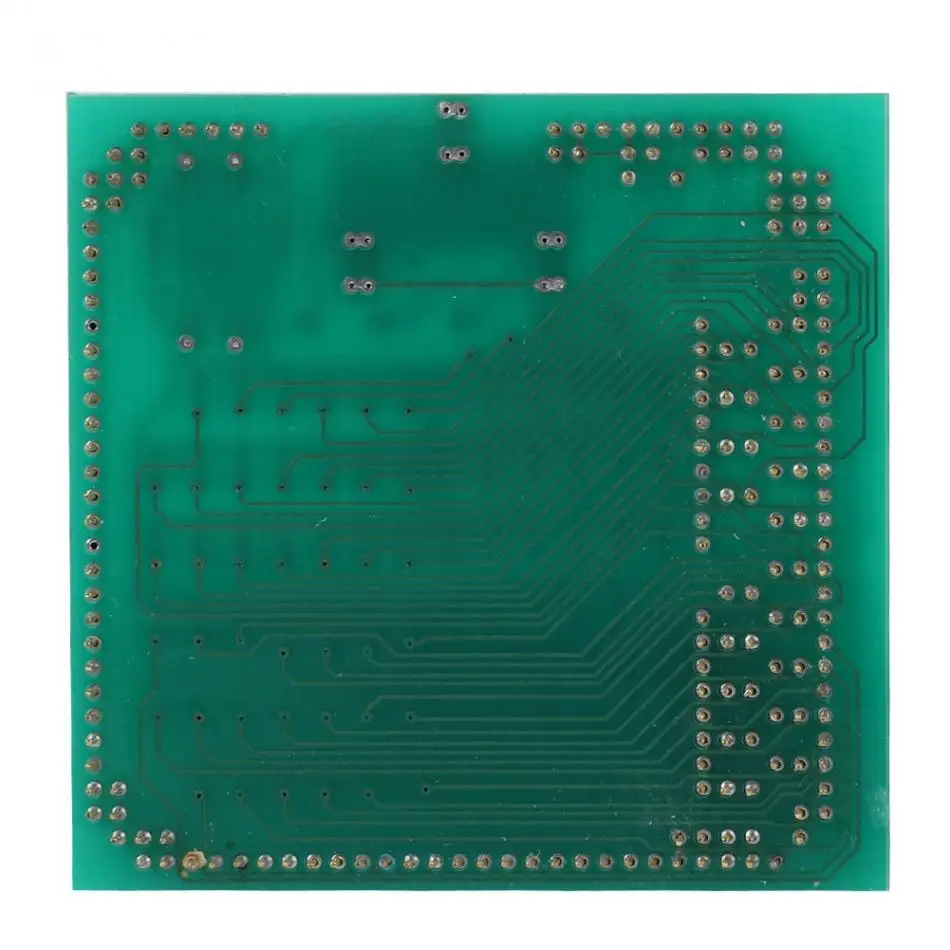

Material: PCB
Weight: Approx. 22g
Size: Approx. 4.2 * 4.2 * 2cm / 1.7 * 1.7 * 0.8in

Package list:
1 * Tester

Instructions for Use
1. Install (CR2032, 3.2V) battery(NOT Included), insert the tester to the corresponding motherboard to determine the open and short circuit of the bus, if the light is not on, then check whether the BGA seat and CPU seat are open and short, if a certain light is very bright, check if the light is shorted to the power supply.

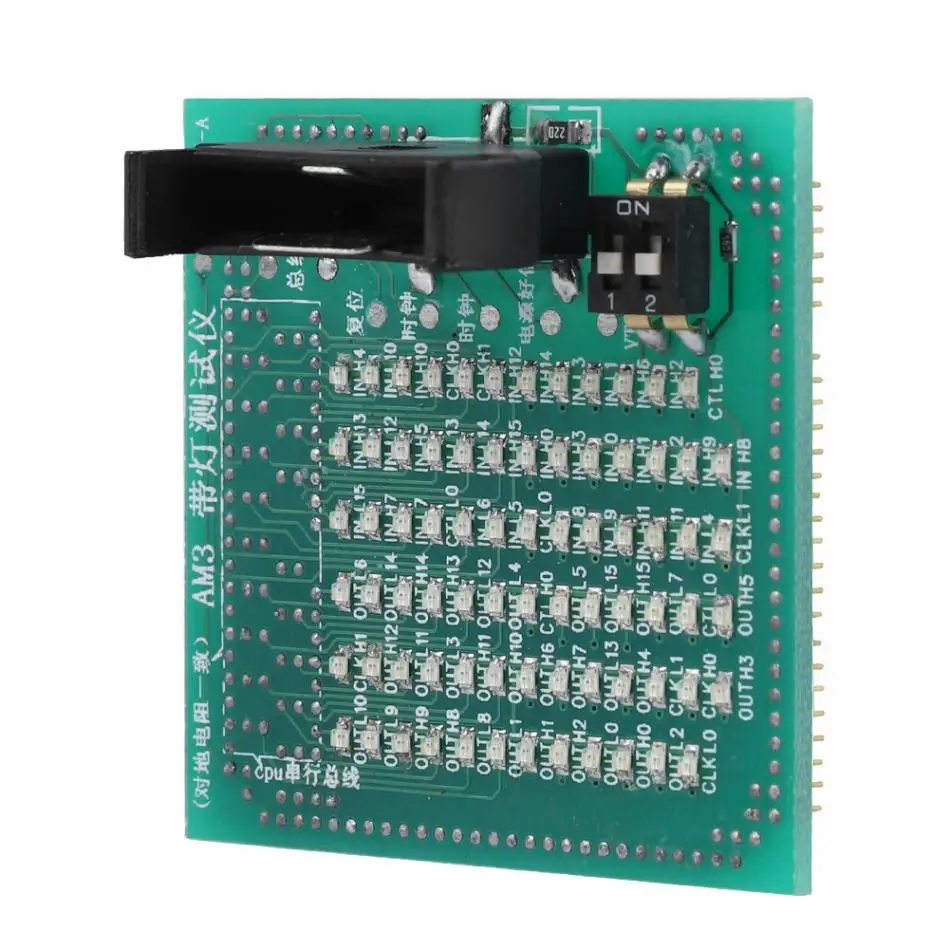

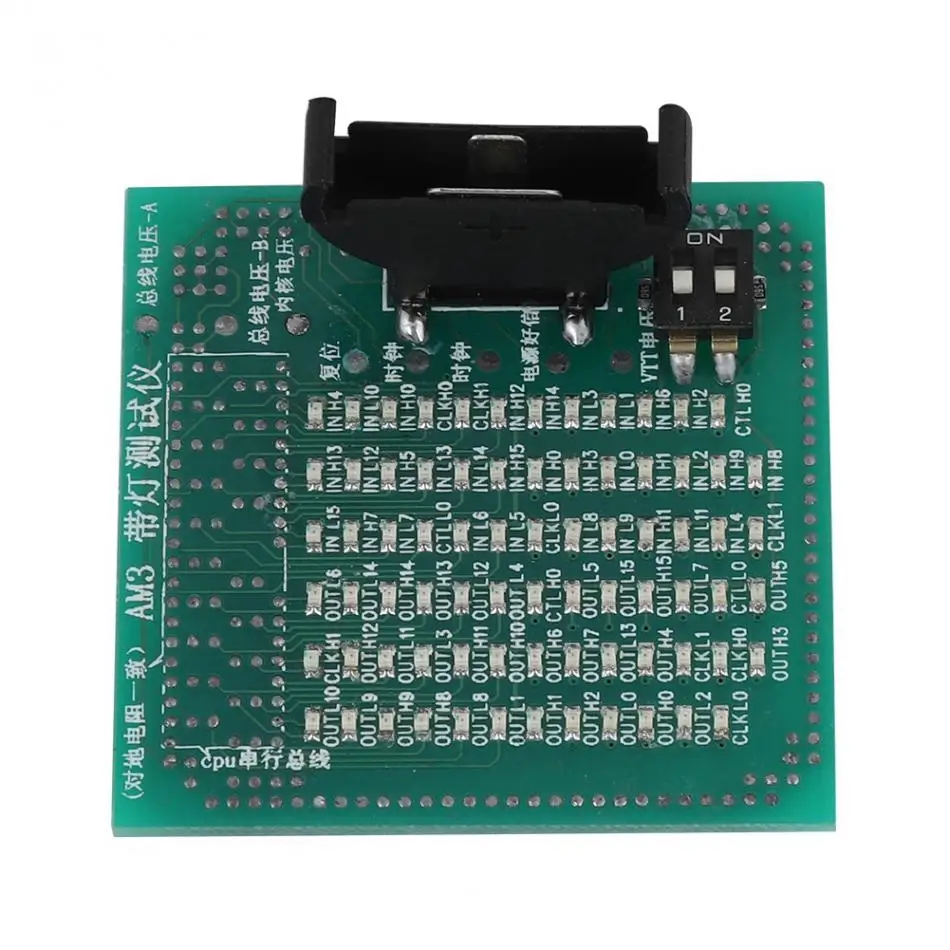

2. There is a band adjustment switch in the upper right corner of the tester, which can adjust the brightness of the bus input and output part indicators according to the motherboard of different chipset.
3. Connect the motherboard and the power supply, use an oscilloscope to check the clock between the test light and the battery holder of the tester, reset, and test the signal at the test voltage.

4. This tester can also be used as a load, resistance card.
